MAG-095A 95° Elbow Air Micro Grinder – 52,500 RPM Internal Bore Grinding Tool
MAG-095A 95° Elbow Air Micro Grinder – 52,500 RPM Internal Bore Grinding Tool

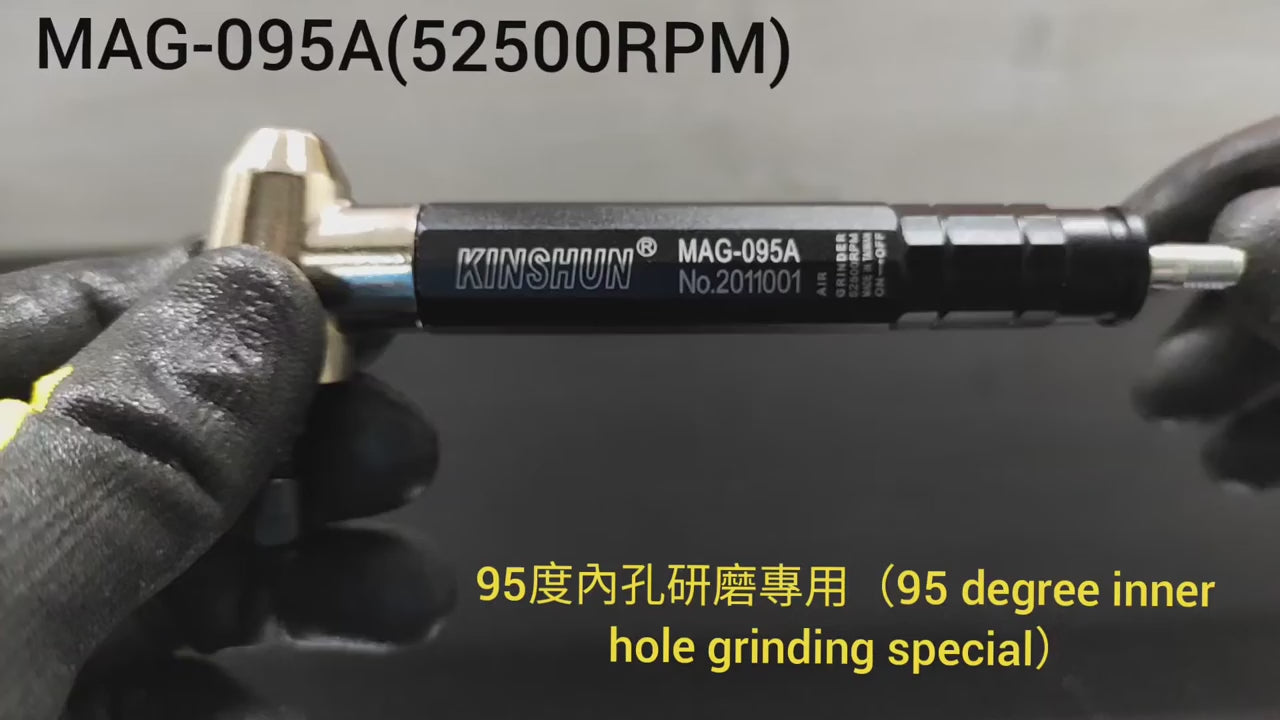

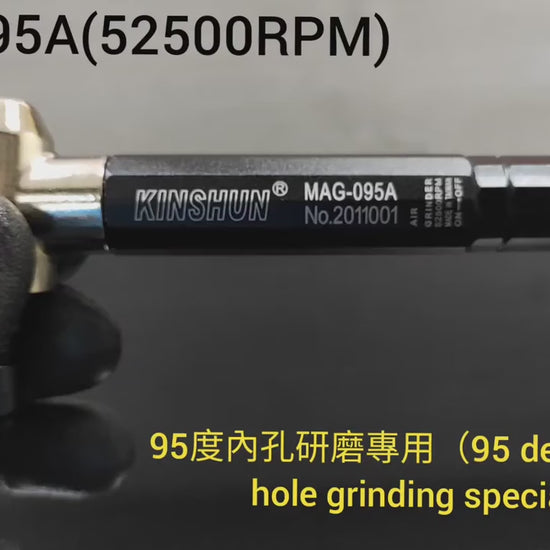

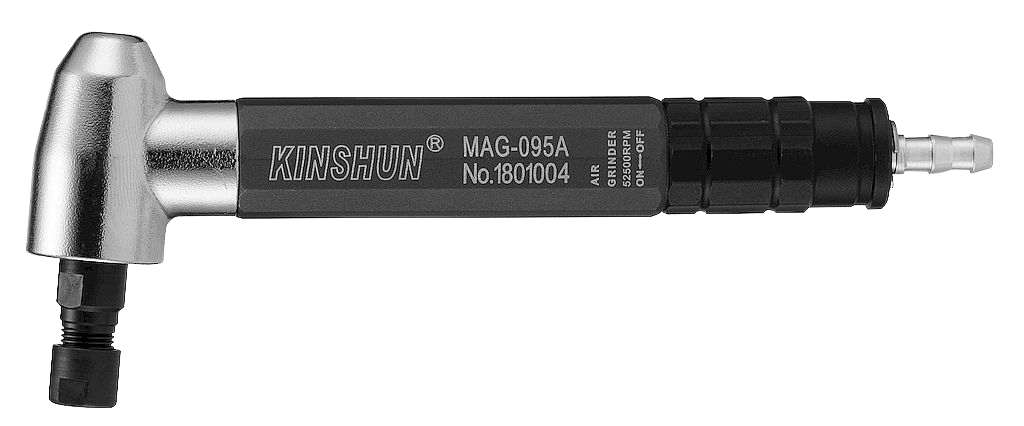

The MAG-095A is a 95° elbow-style precision air micro grinder engineered for internal bore finishing, cavity grinding, and narrow-space polishing. With a 52,500 RPM motor and 95° angled head, it allows operators to access internal corners and confined bores with reduced wrist strain — all components machined using Japan STAR (Automatic Lathe) CNC for superior part accuracy.
Key Features
- 95° elbow design accesses internal bores and confined spaces with reduced wrist fatigue
- Quiet operation at 88 dBA (with muffler) — high torque, low noise output
- Interchangeable collet: 3mm / 2.38mm / 3.175mm (1/8") for flexible tooling
- Small-pitch gear design delivers high torque and superior precision
- Stainless steel rotor for extended service life and lower vibration
- Ultra-slim 17mm body diameter — ideal for deep internal bore access
- Adjustable roller-type throttle valve for fine speed control
Applications
Internal bore finishing · Cavity grinding · Mold polishing · Narrow-space deburring · Precision internal grinding · Die finishing · Engraving & carving
Technical Specifications
| Specification | MAG-095A |
|---|---|
| Free Speed | 52,500 RPM |
| Head Angle | 95° |
| Noise Level | 88 dBA (w/ muffler) / 93 dBA (w/o muffler) |
| Collet Size | 3mm / 2.38mm / 3.175mm (1/8") — interchangeable |
| Overall Length | 139 mm |
| Body Diameter | 17 mm |
| Net Weight | 125 g |
| Weight with Accessories | 0.492 kg |
| Air Pressure | 90 PSI (6.32 kgf/cm²) |
| Air Consumption | 7.42 CFM (210 L/min) |
| Inlet Size | 1/4" |
| Hose Length | 1,300 mm (inner dia. 5mm) |
| Exhaust Type | Rear exhaust |
| Throttle Valve | Roller-type micro-adjust |
Standard Accessories Included
- Spanner wrench 9×9mm × 2pcs
- Oil bottle × 1pcs
- Mounted grinding stone 3mm (8×14mm) × 2pcs
OEM/ODM packaging available. Contact us for wholesale pricing and custom branding options.
