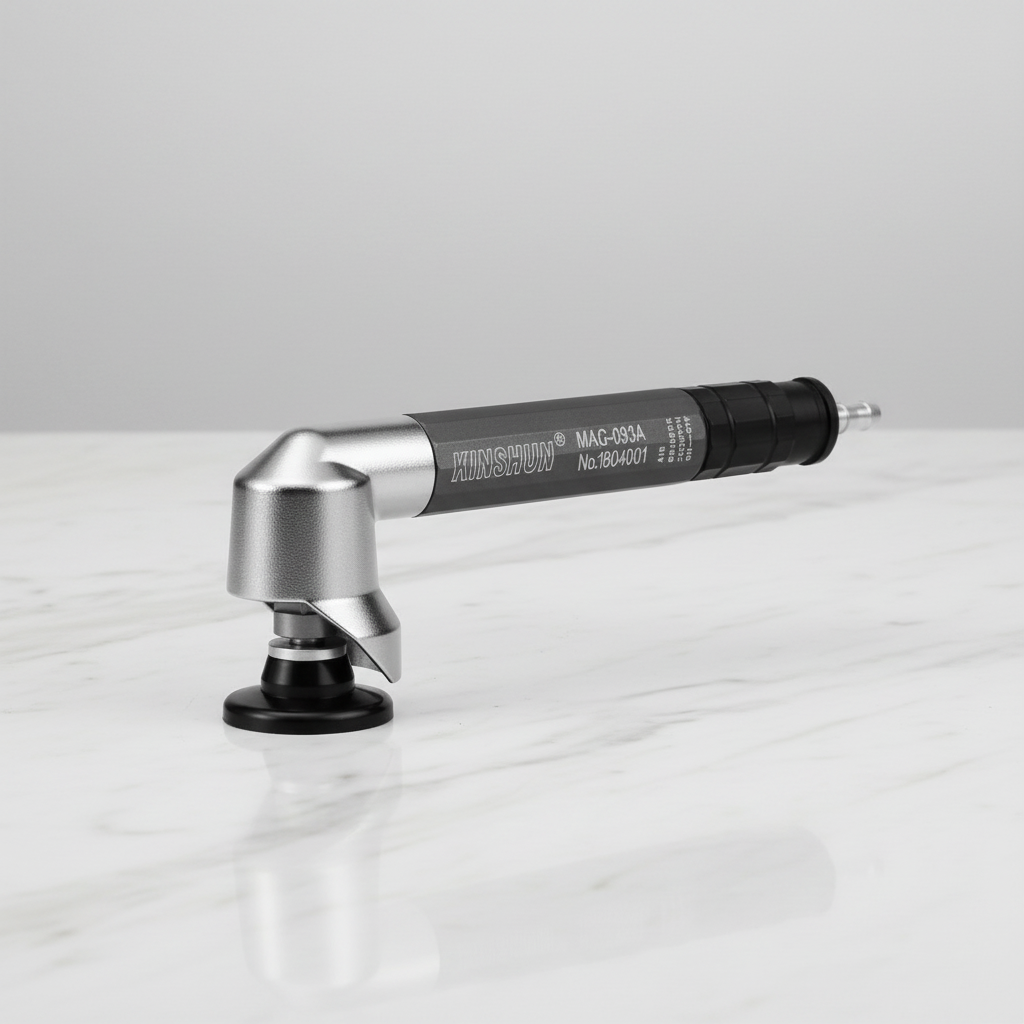

MAG-093A 90° Angled Air Surface Grinder – 23,500 RPM Elbow Micro Grinder
MAG-093A 90° Angled Air Surface Grinder – 23,500 RPM Elbow Micro Grinder
The MAG-093A is a 90° elbow-style precision air surface grinder engineered for flat surface finishing, deburring, and polishing in tight or angled workspaces. With a 23,500 RPM motor and 90° head design, it significantly reduces wrist fatigue during extended operation — all components machined using Japan STAR (Automatic Lathe) CNC for superior part accuracy.
Key Features
- 90° elbow design reduces wrist strain during flat-surface and angled grinding
- Quiet operation at 88 dBA (with muffler) — low noise, high torque output
- Interchangeable 30mm disc pad for flexible abrasive selection
- High torque with compact form factor — ideal for precision flat finishing
- Longer service life and lower vibration for comfortable extended use
Applications
Flat surface finishing · Mold polishing · Deburring · Metal surface preparation · Precision grinding in tight angles
Technical Specifications
| Specification | Value |
|---|---|
| Model | MAG-093A |
| Free Speed | 23,500 RPM |
| Disc Pad Size | 30mm (interchangeable) |
| Body Length | 143.5 mm |
| Body Diameter | 17 mm |
| Net Weight (tool only) | 161 g |
| Tool + Hose Weight | 0.26 kg |
| Noise Level | 88 dBA (with muffler) / 93 dBA (without) |
| Operating Pressure | 90 PSI (6.32 kgf/cm²) |
| Air Consumption | 7.42 CFM / 0.21 m³/min / 210 L/min |
| Air Inlet | 1/4" |
| Air Hose Length | 1,300 mm (ID: 5 mm) |
| Exhaust Direction | Front and rear exhaust |
Standard Accessories Included
- Wrench 9×9mm × 1
- Oil bottle × 1
- Self-adhesive abrasive disc 30mm × 5
- Disc-type grinding wheel 30mm × 1
OEM/ODM packaging available. Contact us for wholesale pricing and custom branding options.
